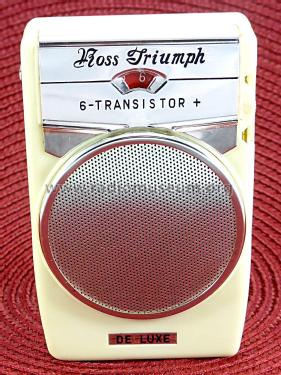

Ross Triumph 6 Transistor de Luxe TPR-561
Ross Electronics Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Ross Electronics Corp.; Chicago (IL)
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239403
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / PP3: 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Ross Triumph 6 Transistor de Luxe TPR-561 - Ross Electronics Corp.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 71 x 110 x 36 mm / 2.8 x 4.3 x 1.4 inch
- Notes
-
Ross Triumph Model TPR-561. AM only. Easel stand in back.
See also another Ross Triumph 6-Transistor.
Made in Japan, probably by Takt Denki.
- Author
- Model page created by Clive Forder. See "Data change" for further contributors.
