• Country
• United States of America (USA)

• Manufacturer / Brand
• Hotpoint Inc.; Chicago (IL)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 261565

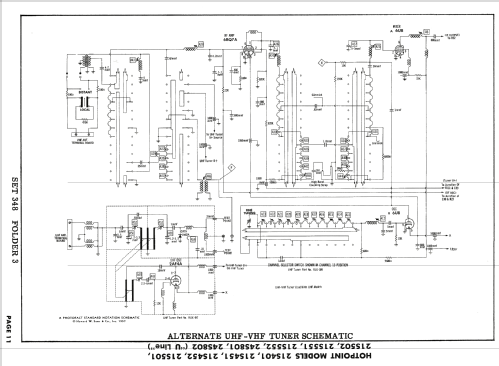

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6BQ7 or 6BS8 6U8 6CF6 6CF6 6CB6 6AU8 6AU6 6T8 6AS5 6BY6 6BL7GT 6CG7 6BQ6GA 6AX4GT 1B3GT 5U4GA or 5U4GB 21ATP4A or 24YP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 21S551 CH= U line - Hotpoint Inc.; Chicago IL

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Hotpoint model 21S551 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis U line and picture tube 21ATP4A.

• Literature/Schematics (1)

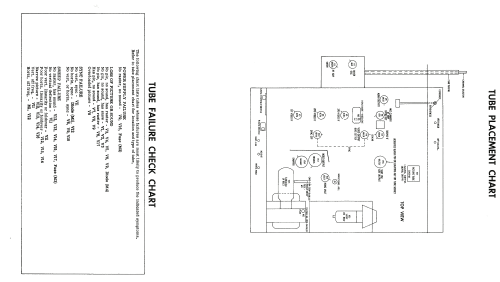

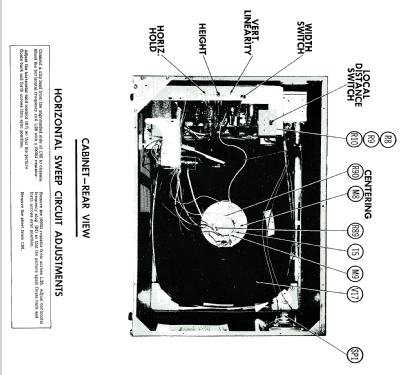

• Photofact Folder, Howard W. SAMS (Set 348 Folder 3 date 2 - 57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
