- Country
- United States of America (USA)
- Manufacturer / Brand
- Howard Radio Company; Chicago, IL
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 44477

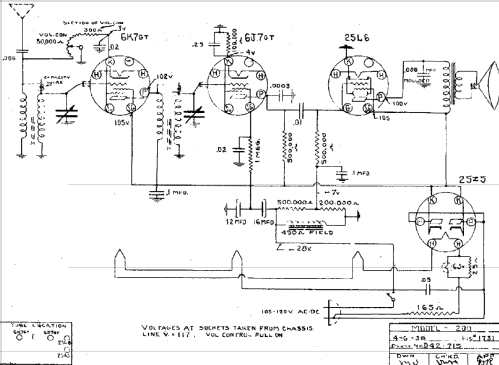

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 200 - Howard Radio Company; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Wood and metal.
- External source of data
- Ernst Erb
- Source of data
- Radio Manufacturers of the 1920's, Vol. 2
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Machine Age to Jet Age II (page 157.)
