40 Ch= H
Howard Radio Company; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Howard Radio Company; Chicago, IL
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 44538
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 1 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

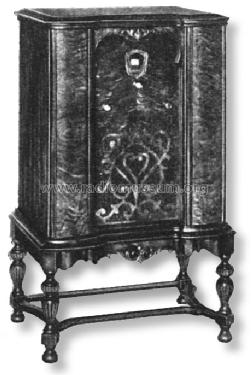

- Model: 40 Ch= H - Howard Radio Company; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- 4 legged lowboy with stretcher base.
Push-pull audio amplifier.
- Price in first year of sale
- 119.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Mentioned in
- Collector's Guide to Antique Radios (6th edition)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 3 = 1933 and before
- Literature/Schematics (2)
- Pre-War Consoles
