• Country
• United States of America (USA)

• Manufacturer / Brand
• Howard Radio Company; Chicago (IL)

• Year
• 1940

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 44549

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K8G 6SK7 6SQ7 6K6GT 6H6G 6C5 80

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 2.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

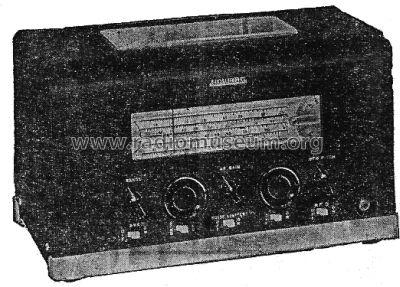

• Model: 436 - Howard Radio Company; Chicago

• Shape
• Tablemodel, low profile (big size).

• Notes
• BC (550 - 1700 kHz), TROP (1700 - 5600 kHz), SW1 (5.5 - 18.0 MHz) and SW2 (17.0 - 43.0 MHz) bands. Noise blanker, BFO.

• Net weight (2.2 lb = 1 kg)
• 40 lb (40 lb 0 oz) / 18.160 kg

• Price in first year of sale
• 39.95 USD

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Shortwave Receivers - Past & Present (3rd ed.)

• Literature/Schematics (1)
• Communications Receivers (4th edition page 74.)
