• Country
• United States of America (USA)

• Manufacturer / Brand
• Howard Radio Company; Chicago, IL

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 44571

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BA6 12AT7 6BA6 6BA6 6AL5 6J5 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz

• Tuned circuits
• 9 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

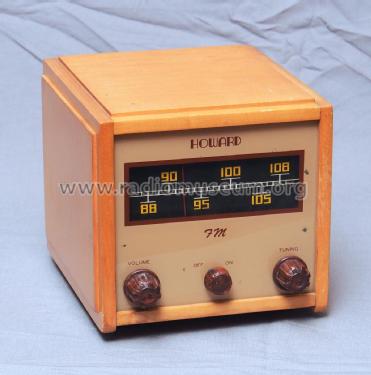

• Model: 482 - Howard Radio Company; Chicago,

• Shape
• Tablemodel, with any shape - general.

• Notes

• US FM Band Receiver with AF output (for radio pick-up input) and volume control, built-in antenna.
  Colors are as follows: Mahogany or Blond.

  FM: 88-108mc.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Mentioned in
• Photofact Folder, Howard W. SAMS (4818-12 Set 48 Folder 12)
