• Country
• United States of America (USA)

• Manufacturer / Brand
• Howard Radio Company; Chicago, IL

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 44651

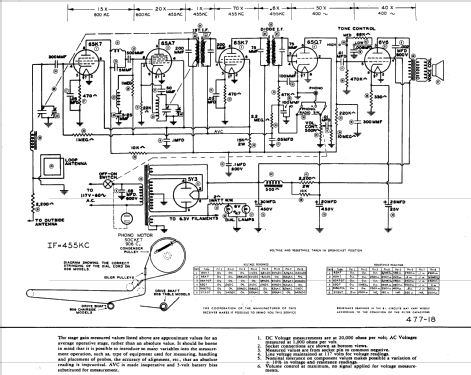

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6V6 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 906 - Howard Radio Company; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 14 x 9.5 x 9 inch / 356 x 241 x 229 mm

• Notes

• Howard AM 6-Tube Radio Model 906.
  Self-contained loop antenna, phono jack in back, copper grill, bold-horizontal end-to-end bakelite dial surround, and striking red/crème lettering on the reverse-painted glass dial against a black background.
  6” x 9” speaker.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 17, Folder 477-18)
