Spinet 135AC Ch = 135AC
Howard Radio Company; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Howard Radio Company; Chicago, IL
- Year
- 1928
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 207977
- Number of Tubes
- 8
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Spinet 135AC Ch = 135AC - Howard Radio Company; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Howard Radio Spinet 135AC Four stages of radio frequency with complete shielding. Push-pull audio with UX250 power tube. Cabinet includes Peerless Dynamic speaker.
- Price in first year of sale
- 245.00 $
- Literature/Schematics (1)

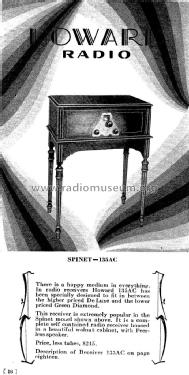

- 1928 Howard Radio Company sales pamphlet page 16
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
