• Country
• Australia

• Manufacturer / Brand
• Howard Radio Pty. Ltd.; Richmond VIC

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169761

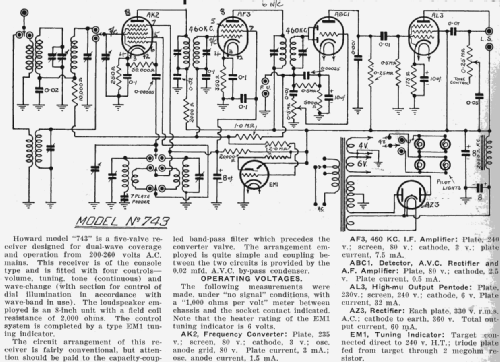

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AK2 AF3 ABC1 AL3 EM1 AZ3

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 200-260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 743 - Howard Radio Pty. Ltd.;

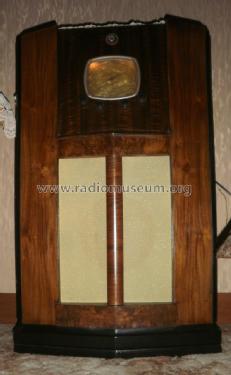

• Shape
• Console, Lowboy (legs < 50 %).

• Literature/Schematics (1)
• Radio Trade Annual 1938 P280.

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
