• Country
• United States of America (USA)

• Manufacturer / Brand
• Hewlett-Packard, (HP); Palo Alto, CA

• Year
• 1968 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 80571

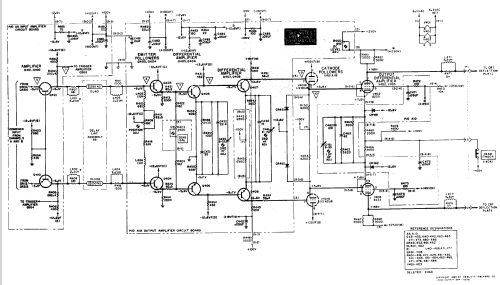

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Power type and voltage
• Alternating Current supply (AC) / 115/230 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope 141A - Hewlett-Packard, HP; Palo Alto

• Shape
• Rack

• Dimensions (WHD)
• 426 x 229 x 466 mm / 16.8 x 9 x 18.3 inch

• Notes
• General Purpose Mainframe / Plug-In Oscilloscope. Mit Sampling-Unit bis 12,4 GHz Bandbreite. Speicherfunktion, variable Nachleuchtdauer.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 1,395.00 $

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• HP Katalog 1969

• Author
• Model page created by Daniel Doll. See "Data change" for further contributors.
