• Country
• United States of America (USA)

• Manufacturer / Brand
• Hughes Aircraft Co.; Los Angeles, CA

• Year
• 1957

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 147331

• Number of Tubes
• 34

• Valves / Tubes
• 6498 1X2B 6AU6 6AN8 6AL5 6AQ5 6J6 6CL6 12AU7 12AX7 12BH7 5651 0B2 6080

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-130 Volt

• Material
• Metal case

• from Radiomuseum.org

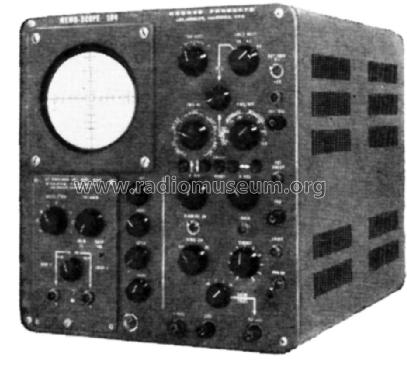

• Model: Memo-Scope 104 - Hughes Aircraft Co.; Los

• Shape
• Tablemodel, with any shape - general.

• Notes
• 5-inch storage type oscilloscope. 700KHz vertical bandwidth; 125K inches per second writing speed, 600K ips with Speed Enhancement option.
  This oscilloscope was one of the early storage equipment, intended for transient capture and display, based upon the Memotron storage CRT. 5-inch storage type oscilloscope. 700KHz vertical bandwidth; 125K inches per second writing speed, 600K ips with Speed Enhancement option.
  This oscilloscope was one of the early storage equipment, intended for transient capture and display, based upon the Memotron storage CRT.
  Not all tubes listed.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
