DVR-9950C
Humax Co., Ltd.; Yongin, Gyeonggi-do;
- Country
- South Korea
- Manufacturer / Brand
- Humax Co., Ltd.; Yongin, Gyeonggi-do;
- Year
- 2006 ??
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 265503
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- HD or solid state memory; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 90-250 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: DVR-9950C - Humax Co., Ltd.; Yongin,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 360 x 50 x 245 mm / 14.2 x 2 x 9.6 inch
- Notes
-
Set-Top-Box für Kabelempfang digitaler Rundfunk- und Fernsehprogramme; speziell geeignet für Pay-TV "Kabel Digital +".
Frequenzbereich: 51...862 MHz; Demodulation: QAM (Quadraturamplitudenmodulation) Audio/Video: MPEG/MPEG 2.

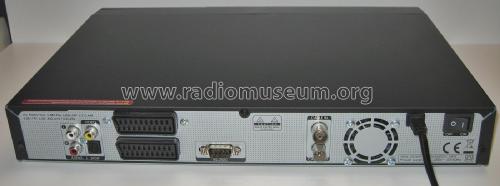

Anschlüsse: RF In/Out (IEC), TV-SCART, VCR-SCART, Video Out (RCA) Audio Out L/R (RCA), SPDIF (optisch), RS-232C, Smartcard-Leser.
Festplatte: 320 GB (SATA).
Anschlussleistung (Betrieb): 26 W.
- Net weight (2.2 lb = 1 kg)
- 2.538 kg / 5 lb 9.4 oz (5.59 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
