• Country
• Germany

• Manufacturer / Brand
• Huth, Signalbau AG, Dr. Erich Franz Huth (Signalbau Huth); Berlin später auch Hannover

• Year
• 1924 ?

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 80877

• • alternative name: Ges. für Funkentelegraphie mbH
  • Brand: Signalbau Huth

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast and LongWave in ONE range.

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org

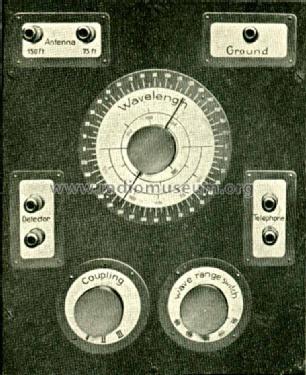

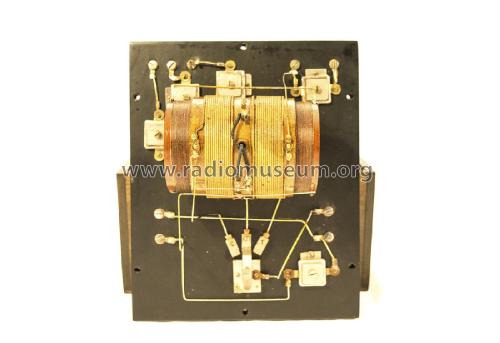

• Model: Variometerempfänger E101 - Huth, Signalbau AG, Dr. Erich

• External source of data
• Der praktische Radioamateur 1924

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Hansjörg Nipp. See "Data change" for further contributors.
