Wellenmesser W.E.30

Huth, Signalbau AG, Dr. Erich Franz Huth (Signalbau Huth); Berlin später auch Hannover

Data
Forum
Pictures
Collections

  • Year
  • 1916 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 119871
    • alternative name: Ges. für Funkentelegraphie mbH
    • Brand: Signalbau Huth

 Technical Specifications

  • Main principle
  • Crystal or Solid State Detector
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Wellenmesser W.E.30 - Huth, Signalbau AG, Dr. Erich
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 513 x 263 x 278 mm / 20.2 x 10.4 x 10.9 inch
  • Notes

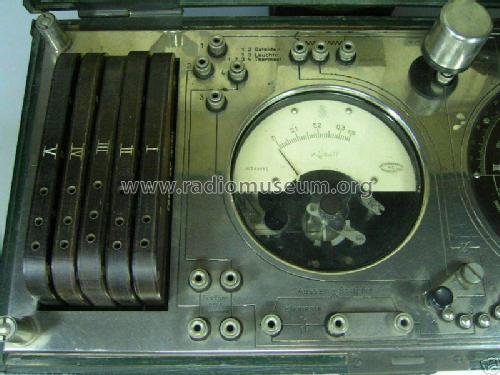

  • Wellenmesser mit acht auf schwenkbaren Metallarm steckbare Spulen für 200 - 33.000 m, eingebautes Wattmeter, Kopfhörer Anschluß.
  • Net weight (2.2 lb = 1 kg)
  • 25.5 kg / 56 lb 2.7 oz (56.167 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
