Störschutz-Kondensator Nr. 7077
Hydrawerk, Elektrizitäts-AG (EAG), Hydra Components; Berlin
- Country
- Germany
- Manufacturer / Brand
- Hydrawerk, Elektrizitäts-AG (EAG), Hydra Components; Berlin
- Year
- 1931 ??
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 320873
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

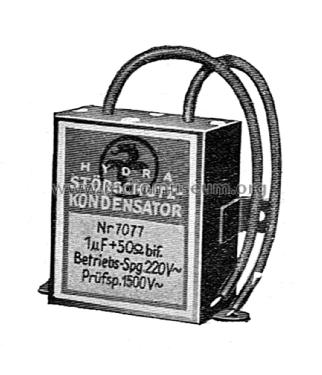

- Model: Störschutz-Kondensator Nr. 7077 - Hydrawerk, Elektrizitäts-AG
- Shape
- Chassis only or for «building in»
- Notes
-
Störschutzkondensator zum Einbau in störende Elektrogeräte.
Kombination aus Kondensator 1 µF, 220 VAC, Prüfspannung 1500 VAC und Widerstand 50 Ω.
- Mentioned in
- -- Original-techn. papers. ("Über die Anwendung von Kondensatoren zur Störbefreiung" HYDRAWERK, August 1931)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
