• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94534

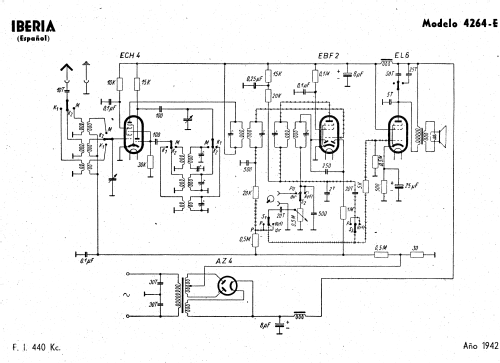

Click on the schematic thumbnail to request the schematic as a free document.

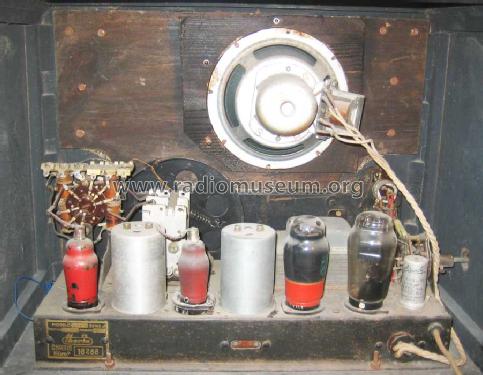

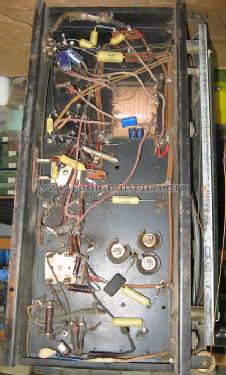

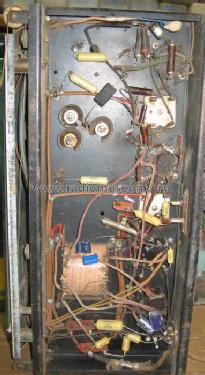

• Number of Tubes
• 4

• Valves / Tubes
• ECH4 EBF2 EL6 AZ4

• Main principle
• Superheterodyne (common); ZF/IF 440 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

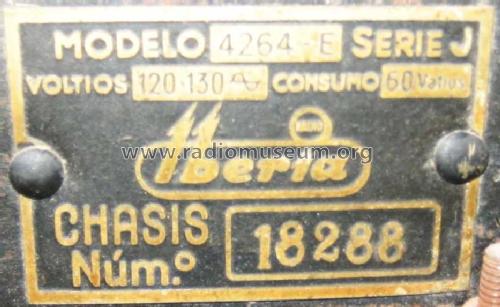

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 4264-E - Iberia Radio, S.A.; Barcelona

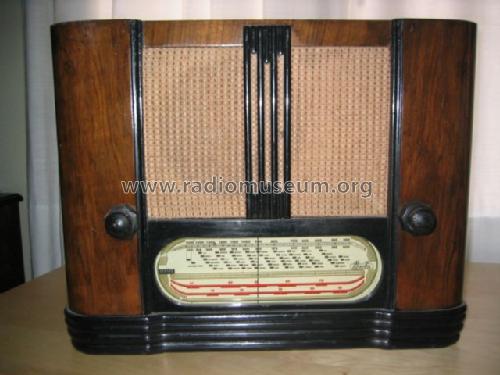

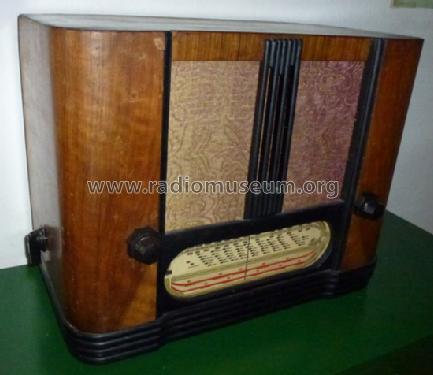

• Shape
• Tablemodel, low profile (big size).

• Notes

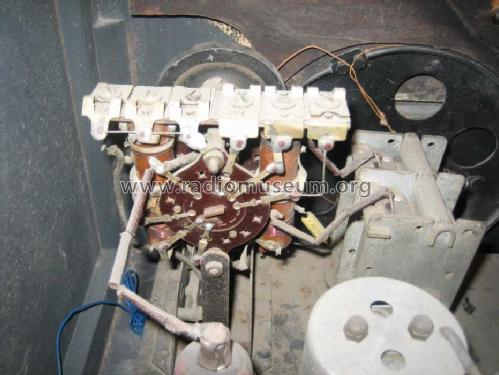

• Der Empfänger 4264E hat die Empfangsbereiche KW1 von 16 bis 40 m, KW2 von 30 bis 80 m und MW von 200 bis 600 m. Die ZF- Verstärkerröhre EBF2 kann in Reflexschaltung zur zusätzlichen NF- Verstärkung herangezogen werden. Die Umschaltung übernimmt der Schalter direkt / Reflex / Phono.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
