• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 247989

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 ECH42 EAF42 EAF42 EL41 AZ41

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

• Power out
• 4 W (5 W max.)

• Material
• Wooden case

• from Radiomuseum.org

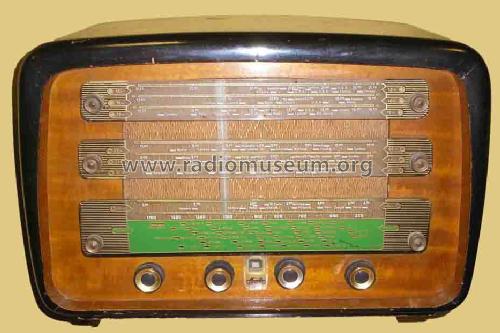

• Model: 4427X Serie H12651 - Iberia Radio, S.A.; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 320 x 270 mm / 19.3 x 12.6 x 10.6 inch

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Author
• Model page created by José Moreno-Conej. See "Data change" for further contributors.
