• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 209422

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 43 25Z5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 120; 130 Volt

• Loudspeaker

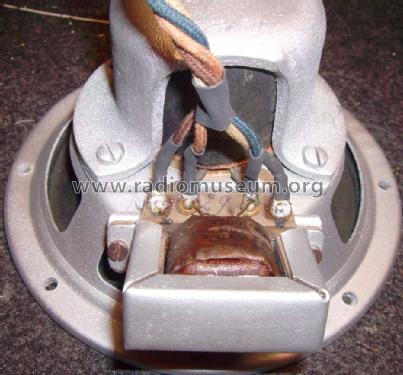

• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16.5 cm = 6.5 inch

• Material
• Wooden case

• from Radiomuseum.org

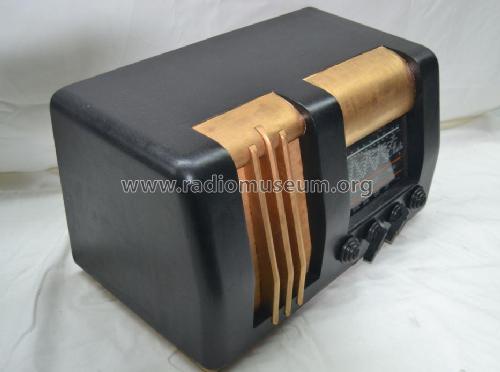

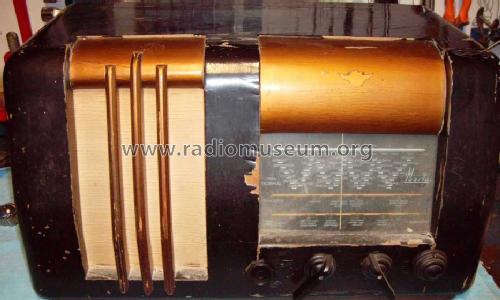

• Model: 541 Serie D [USA tubes] - Iberia Radio, S.A.; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 320 x 325 mm / 22.4 x 12.6 x 12.8 inch

• Notes

• See also Iberia Radio 541 Serie D European P8A tubes.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Mentioned in
• Anuncios La Vanguardia Española septiembre-noviembre 1941

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
