• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118386

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 ECH42 EAF42 EAF42 EL41 AZ41

• Main principle
• Superhet, double/triple conversion; ZF/IF variable/472 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org

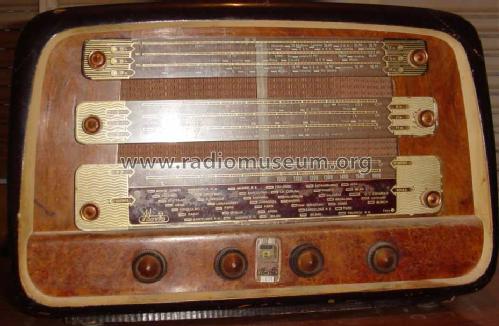

• Model: 84-E Serie H-17652 - Iberia Radio, S.A.; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 515 x 330 x 275 mm / 20.3 x 13 x 10.8 inch

• Notes

•  Primera FI / first IF: variable 2,65 - 3,25 MHz

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jose Luis Campayo-Soriano. See "Data change" for further contributors.
