• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98371

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• HCH81 HF93 HBC90 HL94 HY90

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110; 125; 150 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: C73 - Iberia Radio, S.A.; Barcelona

• Shape
• Tablemodel with Push Buttons.

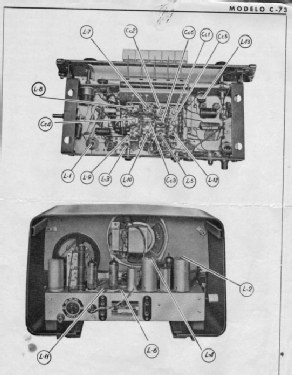

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Mochón-Martínez. See "Data change" for further contributors.
