• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95291

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH35 EF39 EBC33 EL33 AZ31

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

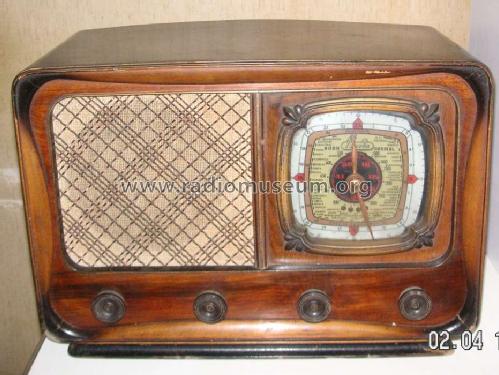

• Model: Cruzado 432E [válvulas europeas] - Iberia Radio, S.A.; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 475 x 330 x 240 mm / 18.7 x 13 x 9.4 inch

• Notes

• Iberia Radio, S.A., modelo Cruzado (válvulas europeas)

  Véase también modelo Cruzado (válvulas americanas)

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 3,069.10 Pts

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
