11-B5 Serie D-29

• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94798

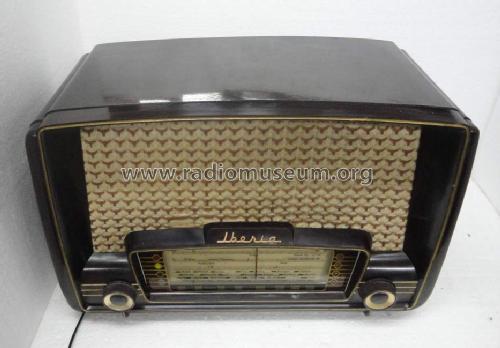

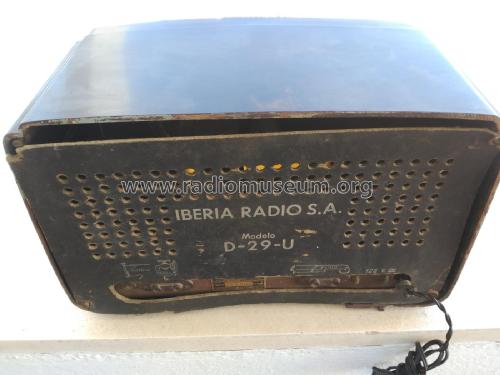

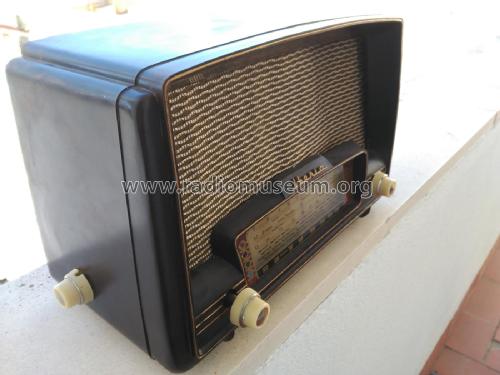

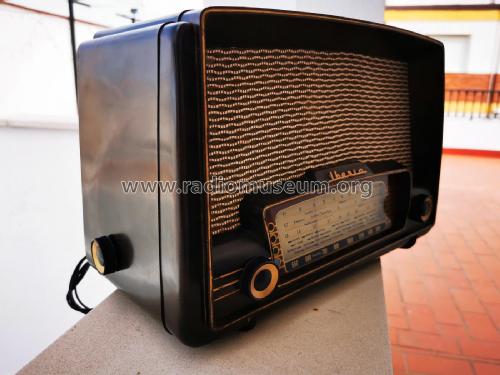

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

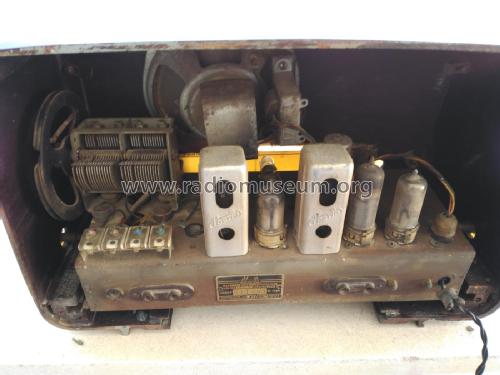

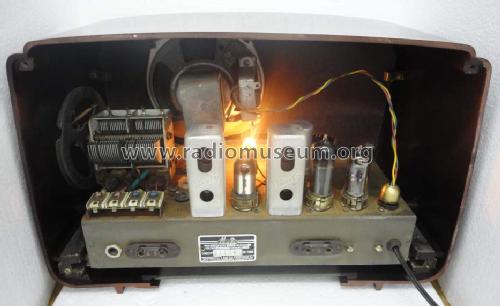

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50B5 UY41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 115-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 11-B5 Serie D-29 - Iberia Radio, S.A.; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 376 x 245 x 182 mm / 14.8 x 9.6 x 7.2 inch

• Notes

• 3 SW bands:
  Fishery = 75 - 200 m
  SW1 = 9.1 - 18 MHz
  SW2 = 5.7 - 10 MHz

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Price in first year of sale
• 1,997.00 Pts

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
