• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62487

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100; 125; 150 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org

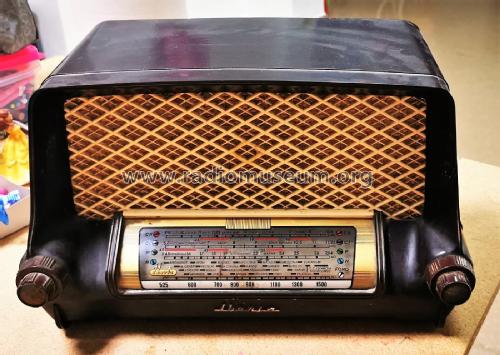

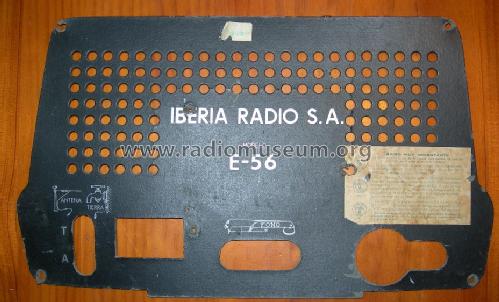

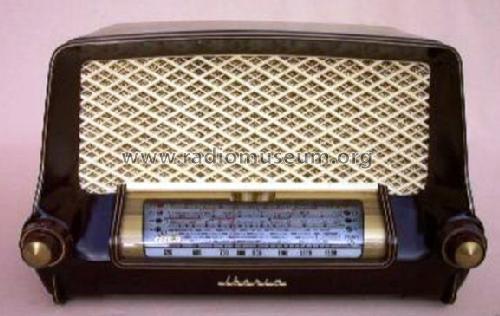

• Model: E-56 - Iberia Radio, S.A.; Barcelona

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 400 x 230 x 230 mm / 15.7 x 9.1 x 9.1 inch

• Notes
• Autotransformador. Puede modificarse con facilidad para 220V llevando la red a la salida del autotransformador. Bandas: OM, 2 x OC y Banda Pesquera.

• Price in first year of sale
• 2,243.35 ESP

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

• Literature/Schematics (1)

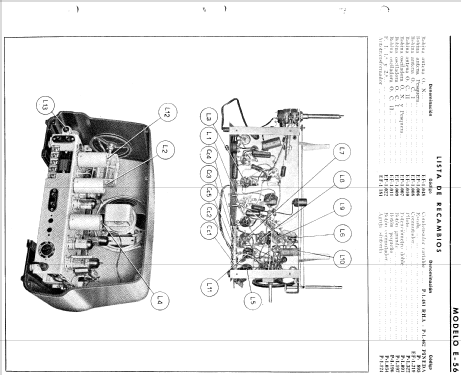

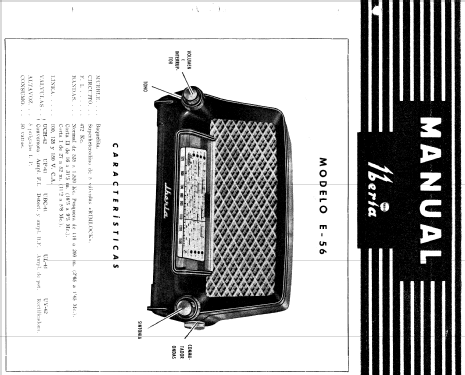

• -- Original-techn. papers.

• Literature/Schematics (4)
• Anuncio La Vanguardia Española noviembre 1955
