• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95450

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BQ7A ECH81 EF93 EABC80 EM85 ECC83 EL84 EL84 EZ80 EZ80

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

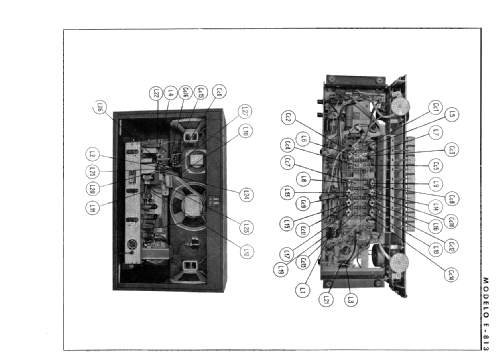

• Model: E-813 - Iberia Radio, S.A.; Barcelona

• Shape
• Tablemodel with Push Buttons.

• Price in first year of sale
• 6,989.00 ESP

• Mentioned in
• La Vanguardia Española 4-01-1958

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
