RE-64 Serie F-25553
Iberia Radio, S.A.; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Iberia Radio, S.A.; Barcelona
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 200486

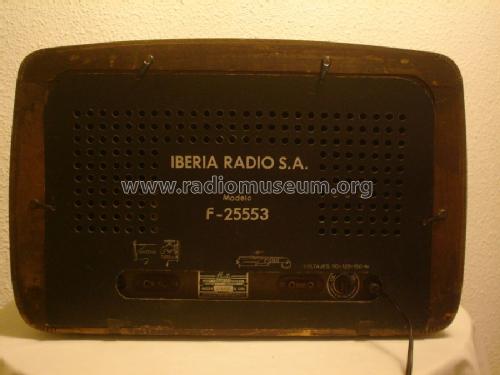

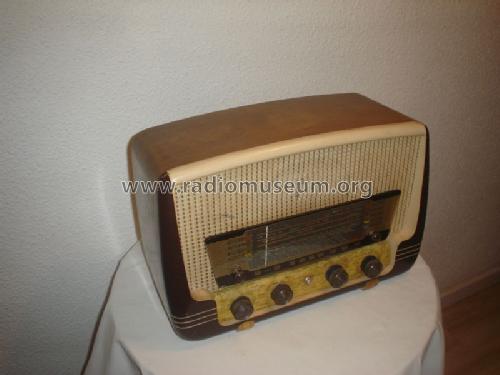

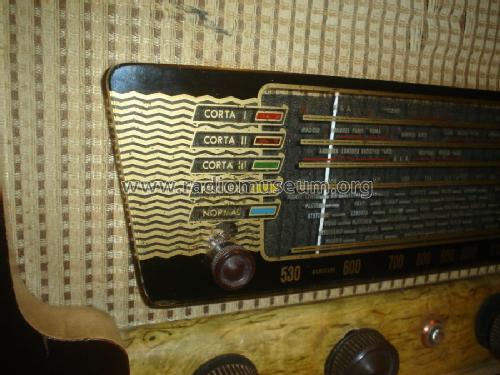

de mis amigos paqui y yoko reparada por mi
propiedad de mis amigos paqui y joko
de mis amigos paqui y yoko
de mis amigos paqui y joko
amigos paqui y yoko
amigos paqui y joko
de mis amigos paqui y yoko
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: RE-64 Serie F-25553 - Iberia Radio, S.A.; Barcelona
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 470 x 300 x 200 mm / 18.5 x 11.8 x 7.9 inch
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
