• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94529

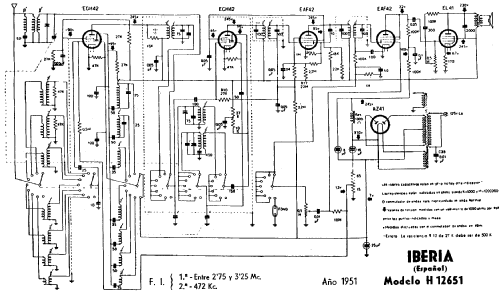

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 ECH42 EAF42 EAF42 EL41 AZ41

• Main principle
• Superhet, double/triple conversion; ZF/IF 472 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: H12651 - Iberia Radio, S.A.; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Notes
• Ocho (8) bandas. OM y 7 x OC.
  Primera F.I. variable entre 2,75 y 3,25 MHz.
  Bobina de campo/field coil : 1300 Ohms.
  Eight bands, MW and 7 x SW.
  First I.F. variable between 2,75 and 3,25 MHz.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 258 models, 212 with images and 175 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Iberia Radio, S.A.; Barcelona
