IV B-5 Serie C-36
Iberia Radio, S.A.; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Iberia Radio, S.A.; Barcelona
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 123265
Foto frontal
Trasera

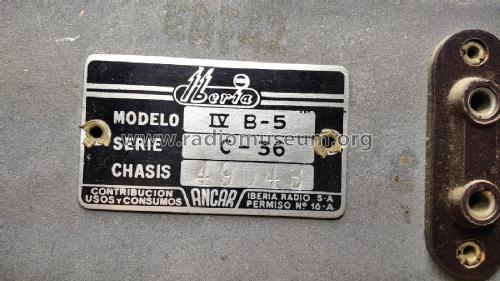

Chapa identificativa

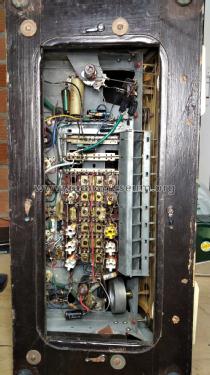

Interior
Interior chasis
Detalle interior chasis
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: IV B-5 Serie C-36 - Iberia Radio, S.A.; Barcelona
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 530 x 340 x 240 mm / 20.9 x 13.4 x 9.4 inch
- Notes
-
Iberia Radio, S.A., IV B-5 Serie C-36
Una de las bandas de onca corta es la onda pesquera.
