• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127245

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF41 EBC41 EL84 EM80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

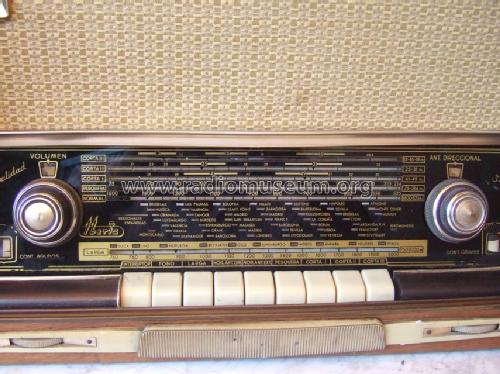

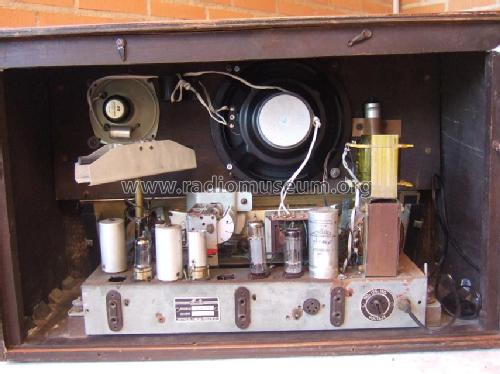

• Model: J-77 - Iberia Radio, S.A.; Barcelona

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 400 x 250 mm / 23.6 x 15.7 x 9.8 inch

• Notes

• Altavoces: Uno de 8" y otro de 4".

  Bandas:

  • OL 750 ... 2009 m
  • ON 187 ... 571 m
  • Pesquera 75 ... 214 m
  • Corta 1 33.3 ... 53.5 m
  • Corta 2 20.8 ... 33.3 m
  • Corta 3 13 ... 20.8 m

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Source of data

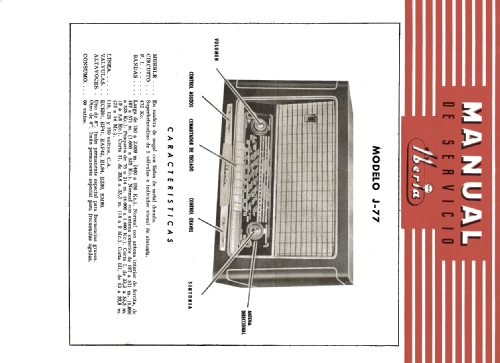

• -- Original-techn. papers.

• Author
• Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
