• Country
• Spain

• Manufacturer / Brand
• Iberia Radio SA; Barcelona

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156110

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC41 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• AC/DC-set / 110/130 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 16 cm = 6.3 inch

• Power out
• 2 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

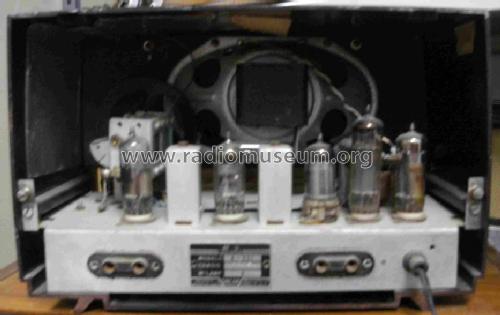

• Model: K-221 [UCH81] - Iberia Radio SA; Barcelona

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 290 x 190 x 180 mm / 11.4 x 7.5 x 7.1 inch

• Notes
• oc de 16 a 49m, onda pesquera de 75 a 214m

• Price in first year of sale
• 2,274.00 ESP

• Mentioned in
• La Vanguardia Española 17-12-1959

• Author
• Model page created by Antonio Pedro Morote-Cisma. See "Data change" for further contributors.
