• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156125

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• HCH81 HF93 or 12BA6 HBC90 or 12AT6 HL94 HY90 or 35W4

• Main principle
• Superheterodyne (common); ZF/IF 465 or 472 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• AC/DC-set / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org

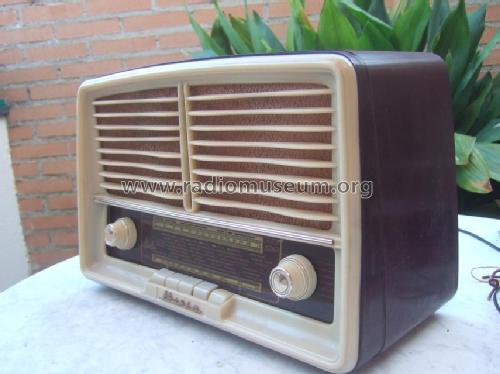

• Model: M-420 - Iberia Radio, S.A.; Barcelona

• Shape
• Tablemodel with Push Buttons.

• Notes
• FI de 472 kHz en los aparatos del 25001 al 26020.

• Price in first year of sale
• 2,695.00 ESP

• Mentioned in
• La Vanguardia Española 4-01-1958

• Literature/Schematics (4)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
