• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1972 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 341770

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF127 AF127 AC188 AC187 MC150 AC180 AC181

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

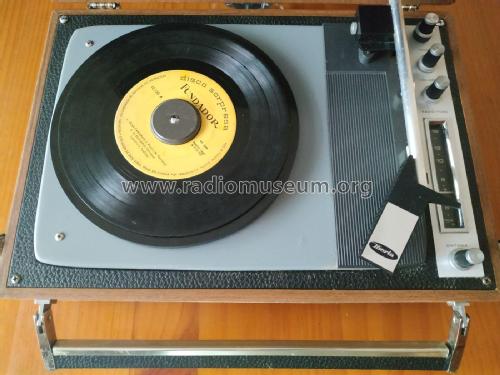

• Model: Radio-Fono DPR-302 - Iberia Radio, S.A.; Barcelona

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 360 x 140 x 276 mm / 14.2 x 5.5 x 10.9 inch

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
