• Country
• Spain

• Manufacturer / Brand
• Iberia Radio, S.A.; Barcelona

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112602

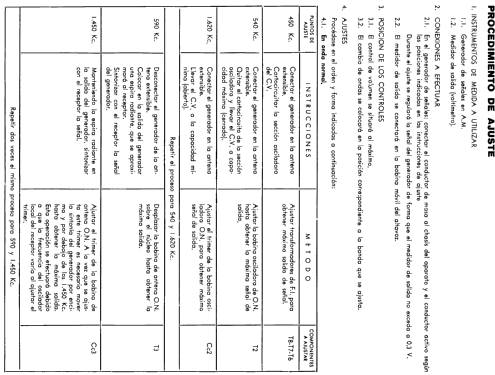

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF115 OA79 AF117 AF117 OA70 OC75 SFT319 OC74 OC74

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 6 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TS-1074 - Iberia Radio, S.A.; Barcelona

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Transistors: AF115, 2× AF117, OC75, SFT319, 2× OC74.

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Ramon Gancedo. See "Data change" for further contributors.

• Other Models

• Here you find 249 models, 205 with images and 173 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Iberia Radio, S.A.; Barcelona
