VS-4207
Iberia Radio, S.A.; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Iberia Radio, S.A.; Barcelona
- Year
- 1967 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 339539
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- PC900 PCF801 EF183 EF183 EF184 PCF80 EF184 PCL86 EL183 PCH200 PCH200 ECH84 PL500 PY88 DY87 PCL85 A65-13W
- Number of Transistors
- Semiconductors present.
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: VS-4207 - Iberia Radio, S.A.; Barcelona
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Iberia Radio, S.A., VS-4207
TV B/N 25"
- Selectores VHF a válvulas y sintonizador UHF a transistores.
- 2 altavoces elípticos de 6 x10" y 5 x 7"
- Diodo doble P3/2D
- Mentioned in
- Esquemario TV REDE, Tomo IV, 1968
- Literature/Schematics (1)

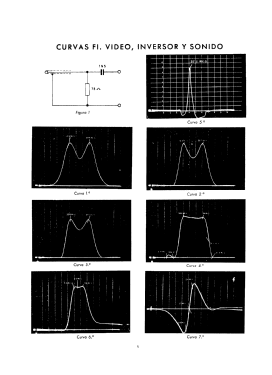

- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
