• Country
• United States of America (USA)

• Manufacturer / Brand
• IBM; Armonk, N.Y.

• Year
• 1949

• Category
• Signal Processing and Computing

• Radiomuseum.org ID
• 356750

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 0A4G 25L6 25L6 25L6 25L6 12SN7GT

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 380 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Electronic Horizontal Card Sorter - Lochkarten Sortiermaschine 82, 082 - IBM; Armonk, N.Y.

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 1500 x 1110 x 410 mm / 59.1 x 43.7 x 16.1 inch

• Notes

• The basic operation of a card sorter is to take a punched card, examine a single column, and place the card into a selected pocket. There are twelve rows on a punched card, and thirteen pockets in the sorter; one pocket is for blanks, rejects, and errors.

  IBM 82 sorts cards at 650/minute

  Height with card counter 1.23m

  There were 3 different power supply units to choose from:
  DC: 110 V; 220 V
  AC 1 phase: 110 V; 190 V; 220 V; 240 V
  AC 3 phases: 110 V; 190 V; 220 V; 240 V; 380 V
  The values of the resistors and capacitors depend on the available mains voltage, see file IBM_082_parts.

  Note that the model name started as 82, but was later changed to 082 to avoid confusion.

  Models for Europe are made in Great Britain.

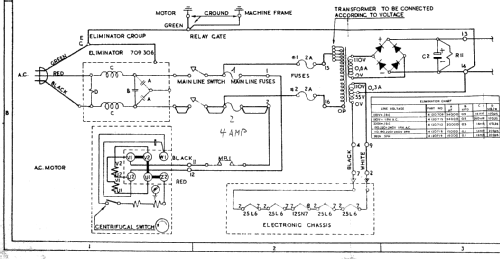

  The schema schows also the 60 cps power supply for machines made in USA for use in America.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)

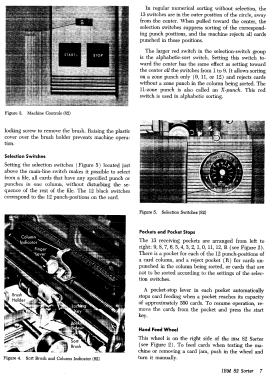

• - - Manufacturers Literature (Product Reference Literature IBM 82, 83, and 84 Sorters, IBM, 1949 ... & 1961, P/N A24-1034-3)

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
