IC-2800H

Icom, Inoue Communication Equipment Corp.; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1999
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 139195
    • alternative name: INOUE COMM. E. CORP

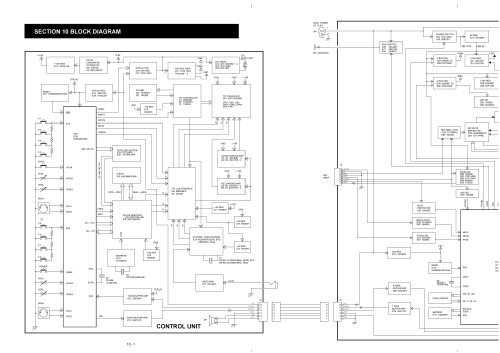

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superhet, double/triple conversion
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage and/or dry batteries / 13,8 Volt
  • Power out
  • 2.4 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: IC-2800H - Icom, Inoue Communication
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 140 x 40 x 166 mm / 5.5 x 1.6 x 6.5 inch
  • Notes
  • ICOM VHF-/UHF-FM-Dualband-Mobiltransceiver IC-2800H.
    RX: 136···174 MHz, 400···530 MHz;
    TX Pout 144···146 MHz: 50 W, 430···440 MHz: 35 W;
    Farbdisplay mit 3-Zoll-Diagonale und einer Auflösung von 480×234 Pixeln, Videobuchse zum Einspeisen externer Videosignale in PAL- und NTSC-Norm, Bedienteil komplett absetzbar, für jedes Band gesonderte Bedienelemente, Datenbuchse für 1k2/9k6-Packet-Radio, Bandscope-Funktion, im Crossband-Betrieb vollduplex-fähig, CTCSS-Coder und -Decoder, 232 Speicher, Umschaltmöglichkeit für echtes NFM im 12,5-kHz-Raster (Hub und ZF-Bandbreite), Duplexer eingebaut.
  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Price in first year of sale
  • 1,229.00 DM
  • Mentioned in
  • FA 9/99
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
