- Country
- Japan
- Manufacturer / Brand
- Icom, Inoue Communication Equipment Corp.; Osaka
- Year
- 1995
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 93998
-
- alternative name: INOUE COMM. E. CORP
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 13.8 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: IC-706 - Icom, Inoue Communication
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 167 x 58 x 200 mm / 6.6 x 2.3 x 7.9 inch
- Notes

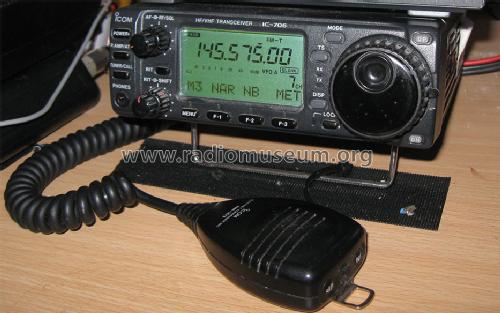

- ICOM Mobile-HF-/VHF-Transceiver IC-706.
Coverage TX: 160-10 m, 6 m and 2 m, RX: 0.3-200 MHz; Modes: SSB, AM, CW/RTTY, FM, WFM (only RX); 102 memories; Pout: 100 W on HF and 6 m (AM 40 W), 10 W on 2 m (AM 4 W).
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Price in first year of sale
- 2,599.00 DM
- Source of data
- -- Original-techn. papers.
- Mentioned in
- Funkamateur 10/1995
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
