• Country
• Japan

• Manufacturer / Brand
• Icom, Inoue Communication Equipment Corp.; Osaka

• Year
• 1982

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 151414

• • alternative name: INOUE COMM. E. CORP

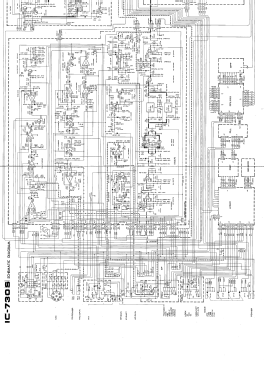

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 86

• Semiconductors

• Main principle
• Transceiver; ZF/IF 39731/9011/455 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / DC 13.8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

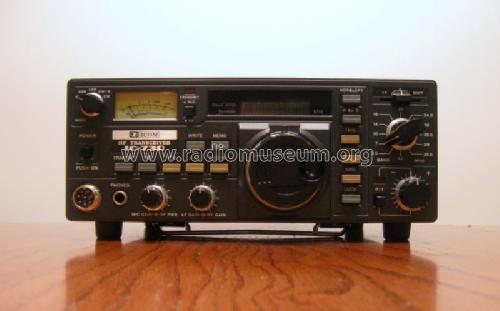

• Model: IC-730 - Icom, Inoue Communication

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 274 x 94 x 241 mm / 10.8 x 3.7 x 9.5 inch

• Notes

• ICOM HF-Transceiver IC-730, mainly for mobile purposes. Frequency range 80 - 10 m HAM bands incl. WARC; Modes SSB, CW, AM; 2 VFOs; P_in 200 W PEP in SSB, 200 W in CW, continuously adjustable from 10 Watt to Max.
  40 W in AM continuously adjustable from 10 to 40 Watt.
  Microphone:Impedance 1300 Ω, input level 120 mV typical. Dynamic or Electret Condenser Microphone with Preamplifier.
  Receiver system: Quadruple conversion Superheterodyne. IF Frequencies: 1) 39.7315 MHz; 2) 9.0115 MHz; 3) 455 kHz; 4) 9.0115 MHz.
  Sensitivity: SSB/CW: Less than 0.3 µV for 10 dB S+N/N. AM: Less than 0.6 µV for 10 dB S+N/N.
  Optional power supply IC-PS13 for home use available.

  86 Transistors (15 FET), 25 ICs and 212 Diodes.

• Net weight (2.2 lb = 1 kg)
• 6.4 kg / 14 lb 1.6 oz (14.097 lb)

• Price in first year of sale
• 2,248.00 DM

• Mentioned in
• RICOFUNK-Katalog 1983

• Literature/Schematics (1)
• -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 5, May 1982.)

• Literature/Schematics (2)
• -- Original-techn. papers. (Original "Instruction Manual")

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
