- Country
- Japan
- Manufacturer / Brand
- Icom, Inoue Communication Equipment Corp.; Osaka
- Year
- 1986–1996 ?
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 73630
-
- alternative name: INOUE COMM. E. CORP
IC-R71 (none suffix) Japan domestic version
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org

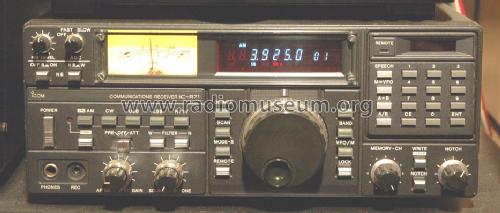

- Model: IC-R71E - Icom, Inoue Communication
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 286 x 111 x 276 mm / 11.3 x 4.4 x 10.9 inch
- Notes
- Icom Communications Receiver IC-R71E.
Frequency range: 0.1 to 30 MHz; Modes: AM, SSB, CW, FM (optional); 32 memories.
Auch als IC-71D mit FTZ-Nummer für den deutschen Markt vertrieben; dann nur bis 26,1 MHz.
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Price in first year of sale
- 2,600.00 DM
- Mentioned in
- RICOFUNK-Katalog 1986
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
- Other Models
-
Here you find 315 models, 209 with images and 95 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Icom, Inoue Communication Equipment Corp.; Osaka
Collections
The model is part of the collections of the following members.
Literature
The model is documented in the following literature.
Forum contributions about this model: Icom, Inoue: IC-R71E
Threads: 2 | Posts: 2
The Icom IC-R71 has been sold in different variants:
Icom IC-R71 A: for Amateur Radio use
Icom IC-R71 E: for the international market
Icom IC-R71 D: German version: restricted coverage 0,15 - 26,1 MHz, FTZ number
Icom IC-R71 A/E without PBT / Passbandtuning: units produced after March 1989
due to a patent dispute, Icom omitted the very efficient Passband Tuning / PBT circuitry
(which in fact was a variable IF bandwidth) in receivers produced after March 1989 without
a change in price or model designation: there are plenty of sets with integrated PBT on the market,
so be very careful when buying a used set or do expect a substantial reduction of price in sets
without PBT.
Kind regards Martin Boesch
Martin Bösch, 04.Jul.10
The Icom R-71 communications receiver was equipped with a 32 kB memory RAM containing the contents of 32 memory channels and information important to control the microprocessor's operating system.
When the backup battery fails (usually after 7 - 10 years of use), not only all memory data is lost, but also the microprocessor control of the receiver becomes inoperativ, this means the radio will not work anymore.
To renew the RAM content and to replace the backup battery, the radio has to be shipped to Icom to reprogram the RAM content.
There are possibilities, to replace the receivers RAM by a modification using a larger memory EPROM, which was available years after the receiver has been designed, try Willco Electronics for details.
Quite often, Icom R-71 are sold on online auctions as inoperative, remember about the backup battery problem when considering to buy a used set! There is no way "just to use a bit of contact cleaner and the radio will play again" as sometimes stated in offers on online auction platforms.
Kind regards Martin Boesch
Martin Bösch, 04.Jul.10
