• Country
• Japan

• Manufacturer / Brand
• Icom, Inoue Communication Equipment Corp.; Osaka

• Year
• 1996

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 72044

• • alternative name: INOUE COMM. E. CORP

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage and/or dry batteries / 13,8 Volt

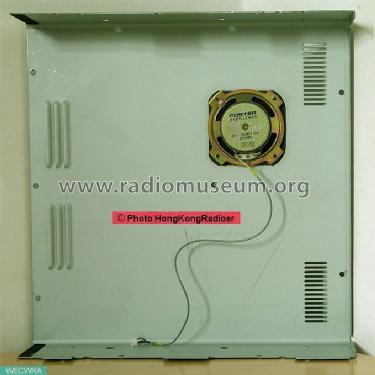

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: IC-R8500 - Icom, Inoue Communication

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 287 x 112 x 309 mm / 11.3 x 4.4 x 12.2 inch

• Notes
• Communications Receiver Icom IC-R8500: coverage 0,1 - 1999,99 MHz, reception modes AM / SSB / CW / NBFM / FM;
  1000 memories to be organized in 20 banks, 20 scan edge memory channels, 1 priority channel for priority scan. RS-232C serial interface connector.
  Optional UT-102 voice synthesizer; optional TV-R7100 TV/FM adaptor to view TV broadcasts. Optional RS-R8500 software for PC remote control.
  Breitbandempfänger Icom IC-R8500
  Frequenzbereich: 0,1 - 1999,99 MHz; Betriebsarten: AM/SSB/CW/NFM/WFM;
  1000 Speicherkanäle die sich in 20 Bänken zuordnen und alphanumerisch bezeichnen lassen, 20 Suchlauf-Eckfrequenzen, 1 Speicher für eine Anrufkanal, ZF-Shift-Funktion.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 4,284.00 DM

• Source of data
• -- Original prospect or advert

• Mentioned in

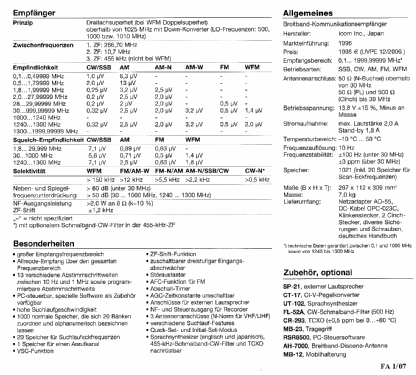

• FA 1/07

• Author
• Model page created by Werner Raacke. See "Data change" for further contributors.
