VHF Marine IC-M3EURO

• Country
• Japan

• Manufacturer / Brand
• Icom, Inoue Communication Equipment Corp.; Osaka

• Year
• 1999 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 356921

• • alternative name: INOUE COMM. E. CORP

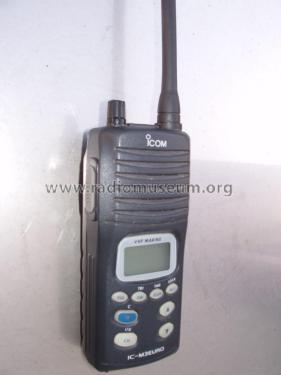

• Picture
• Schematics

Previous Next

Previous Next

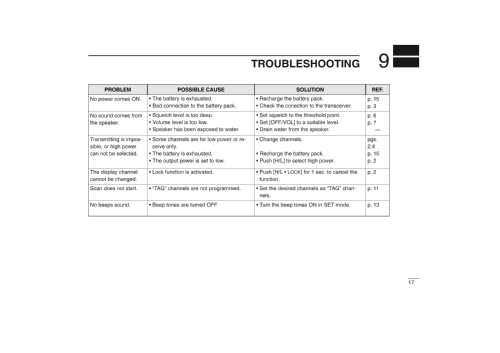

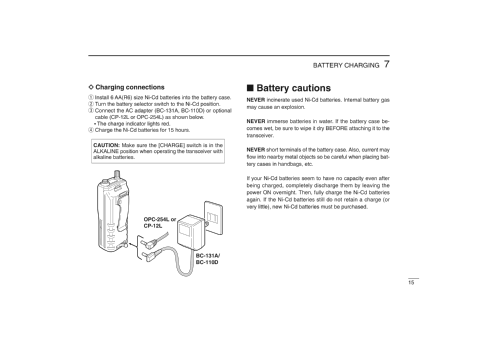

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Batteries / addl. power jack / AA: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: VHF Marine IC-M3EURO - Icom, Inoue Communication

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 58 x 140 x 43 mm / 2.3 x 5.5 x 1.7 inch

• Net weight (2.2 lb = 1 kg)
• 0.410 kg / 0 lb 14.4 oz (0.903 lb)

• Author
• Model page created by David Erali. See "Data change" for further contributors.
