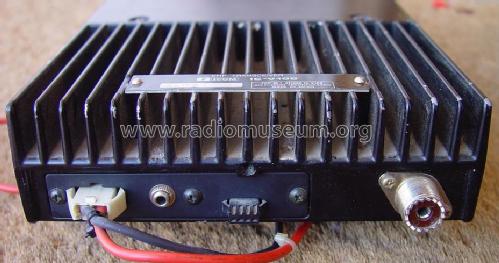

VHF Transceiver IC-V100
Icom, Inoue Communication Equipment Corp.; Osaka
- Country
- Japan
- Manufacturer / Brand
- Icom, Inoue Communication Equipment Corp.; Osaka
- Year
- 1986 ??
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 256249
-
- alternative name: INOUE COMM. E. CORP
- Number of Transistors
- 31
- Semiconductors
- Main principle
- Transceiver; ZF/IF 21800/455 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Powered by external power supply or a main unit. / 13,8 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 5 W (max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: VHF Transceiver IC-V100 - Icom, Inoue Communication
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 170 x 50 x 260 mm / 6.7 x 2 x 10.2 inch
- Notes
-
50 W RF out. 16 Ch. Syntesized from 136-144 or 144-174 MHz. 5kHz mod.
- Net weight (2.2 lb = 1 kg)
- 2.6 kg / 5 lb 11.6 oz (5.727 lb)
- Author
- Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
