Cherry R69 Ch= Barcelona
Ilse-Werke, Ilse & Co.; Uslar
- Country
- Germany
- Manufacturer / Brand
- Ilse-Werke, Ilse & Co.; Uslar
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 22715
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

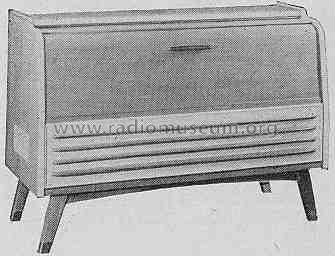

- Model: Cherry R69 Ch= Barcelona - Ilse-Werke, Ilse & Co.; Uslar
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1100 x 750 x 420 mm / 43.3 x 29.5 x 16.5 inch
- Notes
- Rundfunk-Chassis = Blaupunkt Barcelona;
Phono-Chassis = Dual 1003.
- Price in first year of sale
- 920.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 2, Ernst Erb
