• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1962/1963

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 22754

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

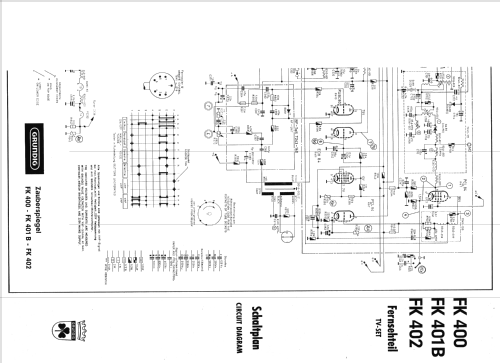

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PC88 PC93 PCC88 PCF80 EF80 EF183 EF183 EF184 EF80 EF184 PABC80 ECH84 PCL84 PC92 PCL85 EL95 PL500 PY88 DY86 AW59-90

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

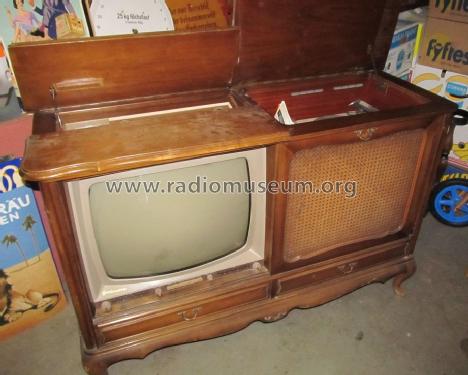

• Model: Zauberspiegel FK401 Barock - Grundig Radio-Vertrieb, RVF,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1370 x 910 x 480 mm / 53.9 x 35.8 x 18.9 inch

• Notes
• Fernseh-Chassis = Zauberspiegel FT220, jedoch ohne Ton-Endstufe;
  Rundfunkteil besteht aus HF2 und NF1;
  Phono-Chassis = Dual 1008.

• Net weight (2.2 lb = 1 kg)
• 120 kg / 264 lb 5.1 oz (264.317 lb)

• Price in first year of sale
• 3,058.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963 / Radiokatalog Band 2, Ernst Erb
