• Country
• Germany

• Manufacturer / Brand
• Ilse-Werke, Ilse & Co.; Uslar

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115023

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 4 W (unknown quality)

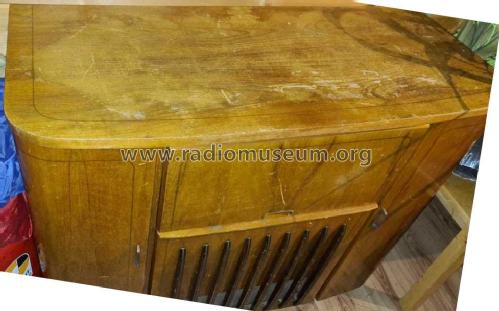

• Material
• Wooden case

• from Radiomuseum.org
• Model: Manuela 3D Ch= Rondo - Ilse-Werke, Ilse & Co.; Uslar

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1020 x 800 x 430 mm / 40.2 x 31.5 x 16.9 inch

• Notes
• Rundfunk-Chassis = Telefunken Rondo;
  Phono-Chassis = Dual 1002F.

• Net weight (2.2 lb = 1 kg)
• 48 kg / 105 lb 11.6 oz (105.727 lb)

• Price in first year of sale
• 994.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1954/55

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
