• Country
• Italy

• Manufacturer / Brand
• Imca Radio; Alessandria

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116113

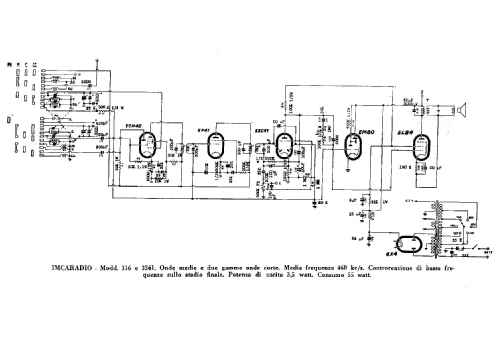

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EM80 EL84 6X4

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

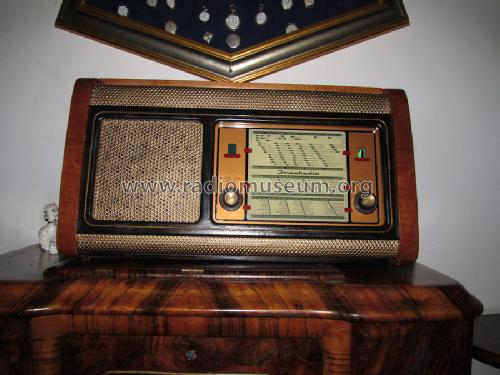

• Model: 3561 - Imca Radio; Alessandria

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 670 x 370 x 270 mm / 26.4 x 14.6 x 10.6 inch

• Notes
• presa Phono

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from I. See "Data change" for further contributors.

• Other Models

• Here you find 91 models, 57 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
