• Country
• Italy

• Manufacturer / Brand
• Imca Radio; Alessandria

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194169

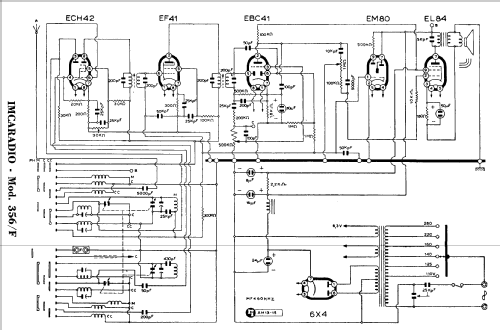

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL84 EM80 6X4

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 356-F - Imca Radio; Alessandria

• Literature/Schematics (1)
• Il Manuale del Radiomeccanico (Vol.3°)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
