• Country
• Italy

• Manufacturer / Brand
• Imca Radio; Alessandria

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99743

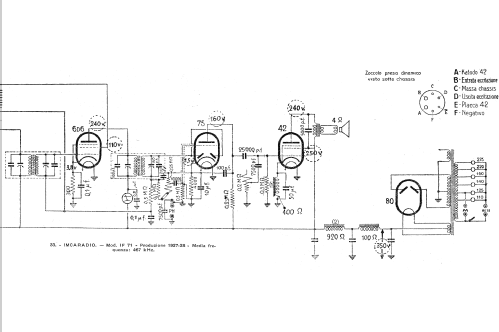

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6D6 6L7 6D6 76 75 42 80

• Main principle
• Superheterodyne (common)

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Esagamma IF71 Radiogrammofono [II Serie] - Imca Radio; Alessandria

• Shape
• Console: Chairside Radio.

• Dimensions (WHD)
• 780 x 980 x 480 mm / 30.7 x 38.6 x 18.9 inch

• Mentioned in
• A. Battocchio, La bella radio, Mosè Edizioni

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 91 models, 57 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
