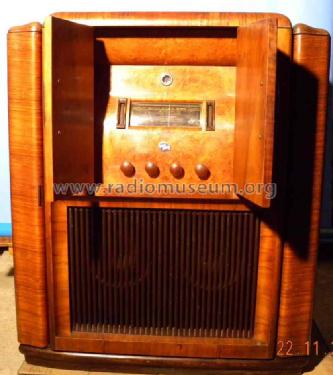

Esagamma IF82 (IV Serie)
Imca Radio; Alessandria
- Country
- Italy
- Manufacturer / Brand
- Imca Radio; Alessandria
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147258
it's at my house
at my disponibility
Listino 1940-41
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-275 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Esagamma IF82 - Imca Radio; Alessandria
- Shape
- Console: Chairside Radio.
- Dimensions (WHD)
- 750 x 980 x 480 mm / 29.5 x 38.6 x 18.9 inch
- Notes
-
Gamme d'onda: OM, OL, 4x OC oppure, a richiesta, 2x OM, 4x OC.
Le valvole indicate sulla targhetta sono diverse 6D6 6L7 76 6D6 75 ETC (triodo ech3 non utilizzato). due altoparlanti elettrodinamici ampificazione bifonica.Wave bands: 2x BC, 4x SW or BC, LW, 4x SW,
- Net weight (2.2 lb = 1 kg)
- 52 kg / 114 lb 8.6 oz (114.537 lb)
- Price in first year of sale
- 4,850.00 ITL
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
