• Country
• Italy

• Manufacturer / Brand
• Imca Radio; Alessandria

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74765

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM4 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

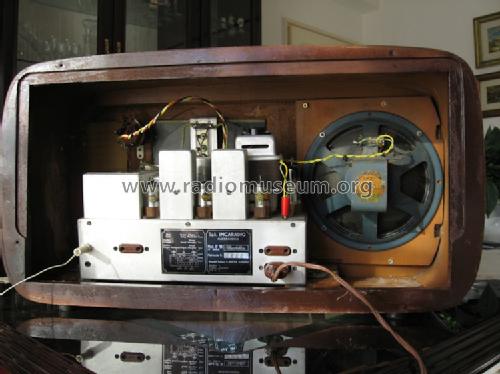

• Model: Nicoletta IF51 - Imca Radio; Alessandria

• Shape
• Tablemodel, low profile (big size).

• Notes
• Varianti "Nicoletta" e "Super Nicoletta".

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 91 models, 57 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
