Esagamma Radiogrammofono IF82 Serie II
Imca Radio; Alessandria
- Country
- Italy
- Manufacturer / Brand
- Imca Radio; Alessandria
- Year
- 1937–1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 96028
da pubblicita' 1938
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 467 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 275 Volt
- Loudspeaker

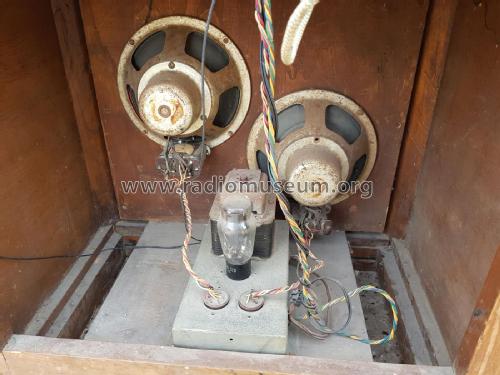

- 2 Loudspeakers
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Esagamma Radiogrammofono IF82 Serie II - Imca Radio; Alessandria
- Shape

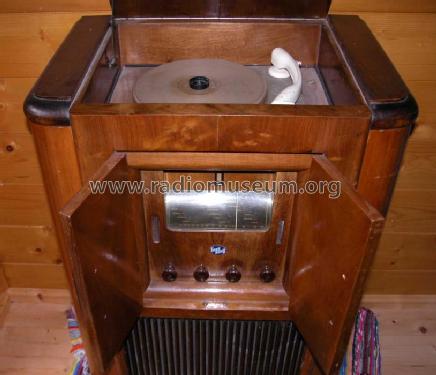

- Console: Chairside Radio.
- Dimensions (WHD)
- 625 x 990 x 420 mm / 24.6 x 39 x 16.5 inch
- Notes
-
Gamme: 2 onde medie 4 onde corte. 2 altoparlanti elettrodinamici 22 cm dipendenti da due finali 42 separatatamente. Indicatore sintonia a ombra.
Circuito B.F. "fonorilievo".
- Price in first year of sale
- 4,850.00 ITL
- Source of data
- Guida Pratica Antique Radio IV (2001)
